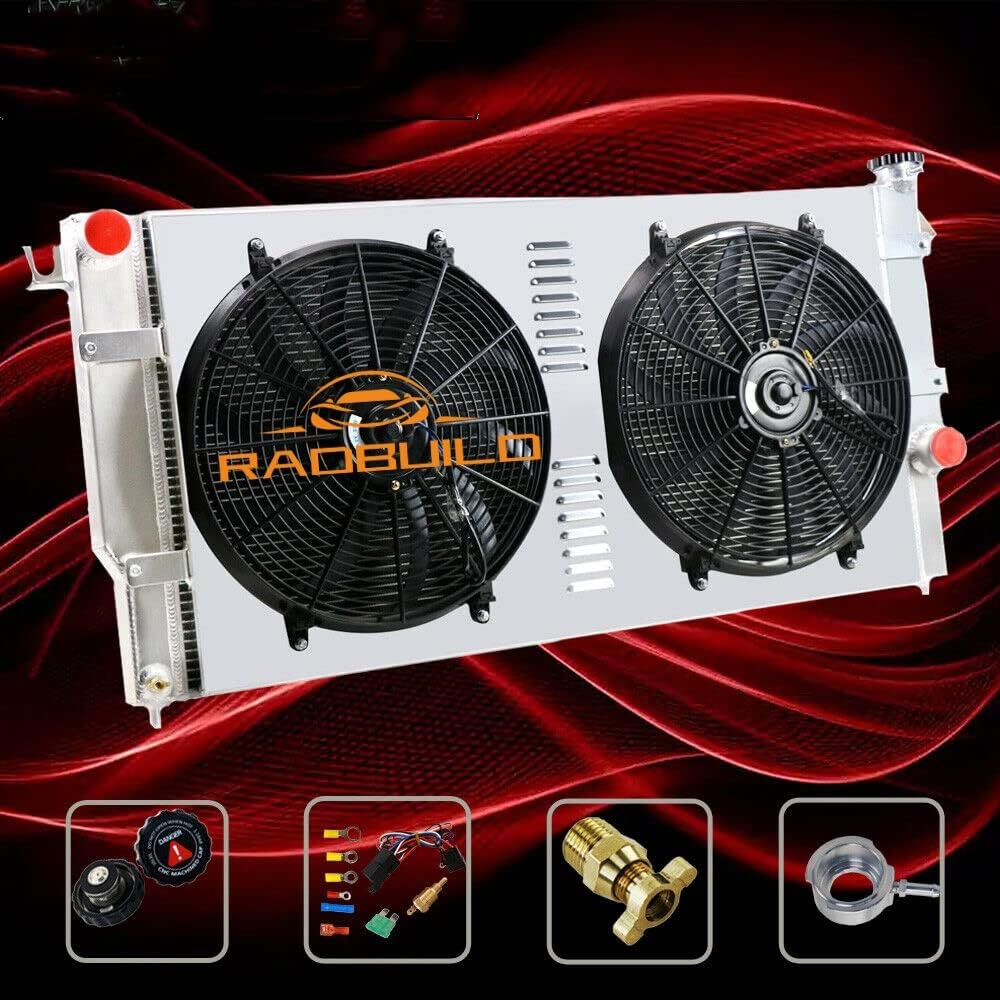

4 Row Aluminum Radiator For 1994-2002 Dodge Ram 2500/Ram 3500 5.9L l6 V8 + Shroud + Fan + Relay

FitmentFor 1994-2002 Dodge Ram 2500 5.9L l6 V8For 1994-2002 Dodge Ram 3500 5.9L l6 V8This Listing Is Including1 X 4-Row Aluminum Radiator (Includes Radiator Cap)1 X Aluminum Shroud2 X 14" Fans (Includes mounting kits)1 X Thermostat Relay KitRadiator DetailsRow Count: 4 RowUpper Inlet: 1.96in located on driver sideLower Outlet: 1.77in located on passenger sideSurface Finish: Aircraft Grade Raw AluminumOEM style brass petcock drainCNC machined filler neck and capFans SizeMaximum Fan CFM: 2200±200FAN DIAMETER X HEIGHT X THICKNESS:14.05" X 14.05" X 2.5"Number of Blades: 8 blades (Plastic)Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 ampsThermostat Kit* Activates by grounding electric fans at preset temperature.* 180'F/165'F turn on/off temperature.RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Part NumberManufacturer Part Number：1553,DPI1553,CU1553,SC1553,SBR1553

• 4 Row Core Radiator for 1994-2002 Dodge Ram 2500 3500 5.9L Cummins 1994 1995 1996 1997 1998 1999 2000 2001 2002 94 95 96 97 98 99 00 01 02
• Core Size: 36.41" H x 19.21" W x 2.44" T Overall Size: 45.39" H x 22.08" W; Inlet/Outlet Diameter:1.96in/1.77in; Transmission oilcooler: No
• Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Easy to Install. Meticulously built to superior OE standards for a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed for Installation
• Crafted by our professional team using the highest-grade materials for exceptional longevity. Any problem, such as quality problems (leaking)/damaged/not received, please contact us via email first
